Textile Pretreatment: Lecture #2 – Singeing

Welcome back to our series on Textile Pretreatment! In our last lecture, we discussed the importance of greige fabric inspection. Once the fabric has passed this initial quality check, it’s ready for its first significant wet (or rather, heat!) process: Singeing.

1. Introduction to Singeing

Singeing is a dry heat process that involves burning off the projecting fibers (fuzz, lint, hairiness) from the surface of woven or knitted fabrics. These projecting fibers are known as “fuzz” or “pile”.

Why is Singeing Necessary?

While the presence of these fuzzy fibers might seem minor, they can cause a host of problems in subsequent dyeing and finishing operations, as well as affect the final product’s quality:

• Uneven Dyeing (Skitteriness): The projecting fibers absorb dye differently than the main body of the fabric, leading to a mottled or uneven appearance, often called “skittery” dyeing.
• Reduced Fabric Lustre and Smoothness: Hairiness gives the fabric a dull, fuzzy appearance and a rougher hand feel. Singeing improves the fabric’s lustre and gives it a smoother, cleaner surface.
• Pilling Tendency: These loose fibers can tangle during wear and washing, forming unsightly pills on the fabric surface. Singeing reduces this tendency.
• Impaired Print Definition: For printed fabrics, fuzz can lead to blurred outlines and poor print definition.
• Dust and Lint Accumulation: Projecting fibers attract and hold dust and lint during subsequent processing and use.
• Problems in Finishing: Can interfere with processes like calendering, coating, or resin finishing.

Essentially, singeing creates a clean, smooth canvas that is ready for consistent and high-quality dyeing and finishing.

2. The Singeing Process

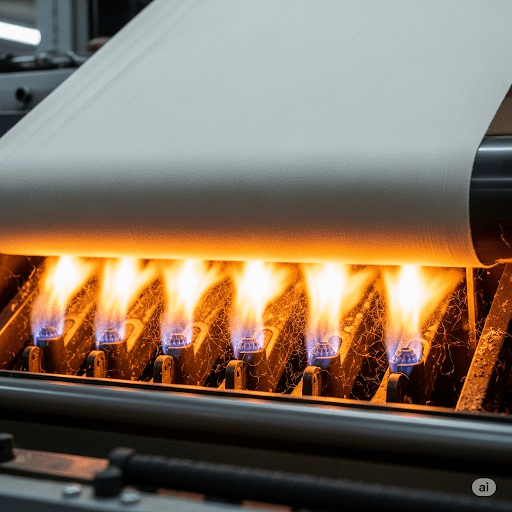

Singeing is typically performed on specialized machines called singeing machines. The fabric is passed at high speed over a flame or heated metal plates.

Key Components of a Singeing Machine:

1. Fabric Entry: The fabric is fed smoothly and at a controlled tension into the machine.
2. Brushing/Beating Unit (Optional but Recommended): Before the flame, the fabric often passes through a brushing and beating unit. This helps to lift and raise the projecting fibers, making them more accessible to the flame and improving singeing efficiency. It also removes loose dirt.
3. Singeing Burners/Plates: This is the core of the machine.
   • Gas Burners: Most common. Fabric passes over precisely controlled flames (typically propane or natural gas). The fabric can pass over the flame in different configurations:
     • Face-to-Flame: Only one side is singed.
     • Face-to-Flame and Back-to-Flame: Both sides are singed in one pass by adjusting the burner position.
     • Tangential: Fabric just touches the edge of the flame.
     • Burning through: Flame passes through open-weave fabrics.
   • Hot Plates: Less common now. Fabric passes over heated copper or ceramic plates. This method is less efficient for very fine hairs and requires more cleaning.
4. Quenching/Cooling Unit: Immediately after passing the flame, the fabric is rapidly cooled to extinguish any residual embers and prevent scorching or fire. This is crucial for safety and quality.
   • Water Immersion: Fabric passes through a water trough. This is the most effective quenching method and also serves as the first stage of desizing.
   • Steam Jet: Hot steam is used to smother any flames.
   • Cold Air Blowers: Less common for effective quenching.
5. Exhaust System: A powerful exhaust system is vital to remove combustion gases, smoke, and burnt lint particles, ensuring a safe working environment and preventing deposition on the fabric.
6. Plaited Fabric Delivery: The fabric is collected in trolleys or on a plaiter for the next process.

3. Factors Influencing Singeing Efficiency

Several parameters must be carefully controlled to achieve optimal singeing:

• Type of Burner/Flame Intensity: Gas burners allow for precise control of flame size and heat. Higher intensity burns off more fibers.
• Speed of Fabric: This is inversely proportional to the degree of singeing. Slower speeds mean longer exposure to the flame and more intensive singeing.
• Distance between Fabric and Flame: Closer proximity results in more effective singeing.
• Number of Singeing Passes: Fabric can be passed over the flame multiple times (e.g., two passes, one for each side) to achieve higher singeing efficiency.
• Fabric Construction: Densely woven fabrics may require different settings than open-weave fabrics.
• Fiber Composition: Cellulosic fibers (cotton) singe easily. Synthetic fibers (polyester) are thermoplastic and melt rather than burn. Care must be taken to avoid bead formation (small, hard melt beads) on synthetics, which can worsen handle. For blends, the singeing conditions must be optimized to singe the cotton component without damaging the synthetic.

4. Post-Singeing Steps

After singeing, the fabric is immediately processed to remove the burnt particles and prepare it for further wet processing.

• Quenching: As mentioned, this is integral to the singeing machine.
• Desizing: Often, the quench bath is also the entry point for the desizing process, where the sizing agents are removed. The heat from singeing can also help to break down some sizing agents, making desizing more efficient.

5. Advantages and Limitations of Singeing

Advantages:

• Improved Fabric Appearance: Creates a clean, smooth surface with enhanced lustre.
• Better Dyeing Results: Ensures more uniform and level dyeing.
• Reduced Pilling: Significantly minimizes the tendency of fibers to form pills during wear.
• Enhanced Print Quality: Leads to sharper and more defined prints.
• Better Handle: Contributes to a softer, more desirable fabric feel.

Limitations:

• Risk of Scorching/Fire: If not properly controlled, the fabric can be scorched or even catch fire.
• Energy Intensive: Requires significant energy for heating the burners.
• Environmental Concerns: Produces combustion gases and fine particulate matter (burnt lint) that require proper exhaust and filtration.
• Not Suitable for All Fibers: Can cause issues like bead formation on synthetics if not handled carefully.

Singeing is a foundational pretreatment step that dramatically enhances the quality and performance of textiles, setting the stage for successful dyeing and finishing operations.
