Lecture 7: The Winding Machine – Preparing Yarn for the Next Stage: Coning

We’ve successfully transformed raw cotton into spun yarn on the ring frame. However, the yarn on the ring frame bobbins (or cops) is in a relatively small, unstable package format that isn’t ideal for subsequent processes like weaving, knitting, or dyeing. This is where the Winding Machine steps in, acting as a crucial bridge between spinning and the next stages of textile manufacturing.

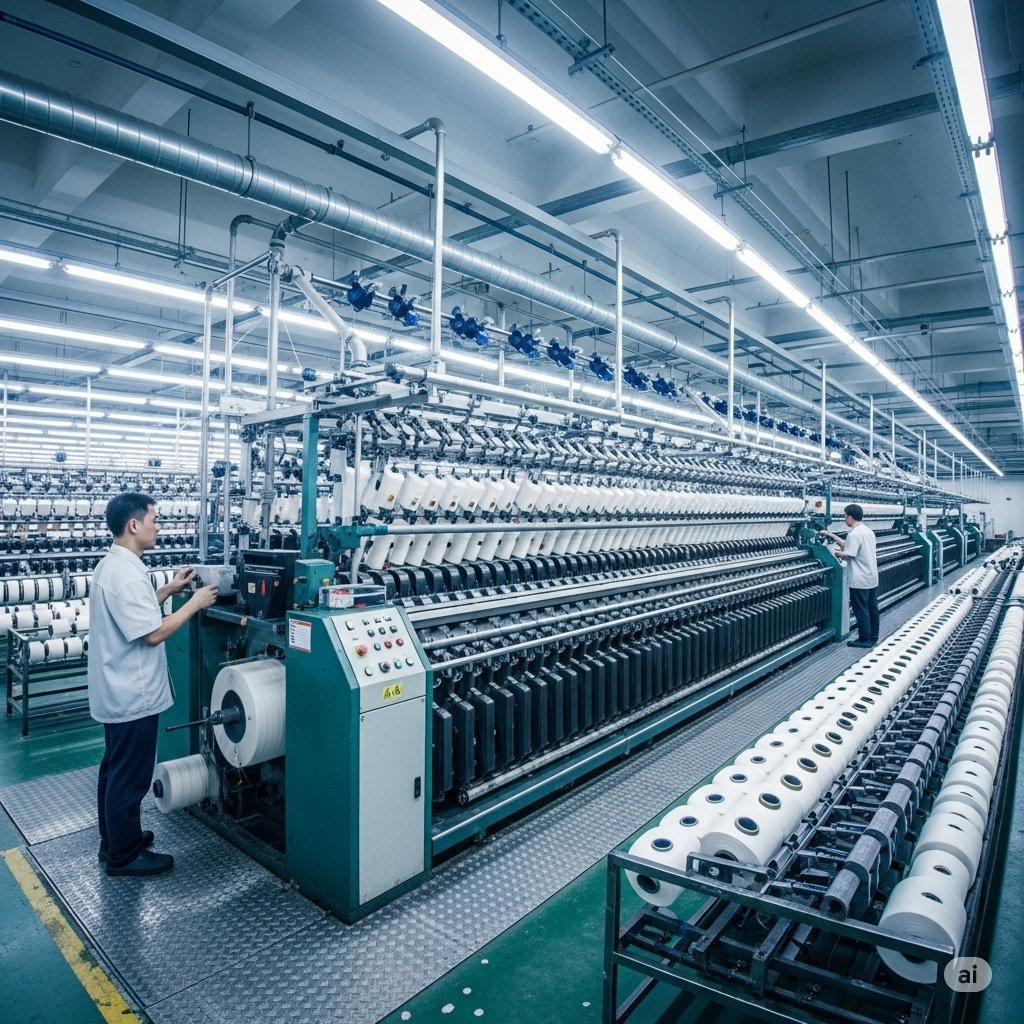

"Inside a vast and well-lit textile mill in Lahore, Pakistan, rows upon rows of modern winding machines are actively processing yarn. The machines, characterized by their numerous individual winding heads, are busily unwinding small bobbins of yarn and rewinding them onto larger cones. Each winding head features sophisticated sensors and mechanisms for clearing yarn faults and creating uniformly wound packages. Textile workers in light-colored uniforms are seen monitoring the machines and handling the completed cones. The sheer scale of the winding section underscores its critical role in preparing the single yarns spun in the mill for subsequent processes like weaving or knitting, a vital step in Lahore's thriving textile industry."

"Inside a vast and well-lit textile mill in Lahore, Pakistan, rows upon rows of modern winding machines are actively processing yarn. The machines, characterized by their numerous individual winding heads, are busily unwinding small bobbins of yarn and rewinding them onto larger cones. Each winding head features sophisticated sensors and mechanisms for clearing yarn faults and creating uniformly wound packages. Textile workers in light-colored uniforms are seen monitoring the machines and handling the completed cones. The sheer scale of the winding section underscores its critical role in preparing the single yarns spun in the mill for subsequent processes like weaving or knitting, a vital step in Lahore's thriving textile industry."

I. Introduction: From Small Bobbins to Large Cones – Optimizing Yarn Packages

The Winding Machine (often referred to as a Cone Winder in cotton spinning) takes the yarn from the small, individual bobbins (cops) produced by the ring frame and rewinds it onto larger, more stable, and uniformly built packages called cones (or sometimes cheeses, depending on the shape). This process is vital for ensuring efficient and trouble-free performance in downstream textile operations.

II. Objectives of the Winding Process

The main objectives of the Winding Machine are:

Package Formation: To convert the small, unstable ring bobbins into larger, well-built, and stable packages (cones or cheeses) that can be easily handled, transported, stored, and processed efficiently in subsequent stages.
Yarn Clearing/Fault Removal: To detect and remove objectionable yarn faults (e.g., thick places, thin places, neps, foreign matter) that might have passed through previous processes. This is achieved by passing the yarn through an electronic yarn clearer.
Paraffin Wax Application (Optional): To apply a uniform coating of paraffin wax onto knitting yarns, which reduces friction during knitting and improves loop formation.
Splicing/Knotting: To join broken yarn ends (either due to faults or bobbin exhaustion) by forming small, strong, and compact splices (or knots, in older machines) that cause minimal interference in later processes.
Improved Yarn Quality (Indirect): By removing faults and creating better packages, winding indirectly contributes to higher fabric quality and fewer defects.
Measuring and Length Control: To wind a precise, predetermined length of yarn onto each package.

III. Principle of Operation: Unwinding, Clearing, Tensioning, and Winding

Modern winding machines are highly automated multi-spindle machines, often with 60 or more winding positions operating simultaneously. Each winding head typically performs these functions:

Bobbin Mounting & Unwinding: A ring frame bobbin is mounted onto a holder. The yarn is unwound from the nose of the bobbin as it rotates or is simply pulled off over-end (in high-speed winders).
Yarn Clearing: The unwinding yarn passes through an electronic yarn clearer. This sophisticated sensor continuously monitors the yarn for imperfections (e.g., thick spots, thin spots, neps, foreign particles). If a fault exceeding pre-set limits is detected, the yarn is immediately cut.
Splicing/Knotting: After a cut (due to a fault or bobbin exhaustion), the two broken ends (from the incoming bobbin and the outgoing cone) are automatically detected and joined by a splicer (pneumatic or mechanical) or a knotter. Splicing creates a strong, neat joint where fibers are entangled, making it virtually invisible in the final fabric, unlike older knots which could cause fabric defects.
Tensioning: The yarn passes through a tensioning device to ensure uniform tension throughout the winding process, which is crucial for package density and stability.
Traverse System: A traverse mechanism (e.g., grooved drum, traverse guide) guides the yarn back and forth along the length of the cone, building a consistent and stable package. The precision of this mechanism ensures uniform density and shape.
Cone Winding: The yarn is finally wound onto a cardboard or plastic cone (or tube) at high speed. The cone rotates on a spindle, driven by contact with a friction roller (grooved drum) or directly by a motor (precision winding).
Auto-Doffing (Optional): Advanced machines feature automatic doffing of full cones and automatic loading of empty ones, significantly reducing manual intervention.

IV. Key Features of Modern Winding Machines

Electronic Yarn Clearers: The most vital feature, capable of detecting and removing a wide range of yarn faults with high precision. Advanced clearers can even classify faults and collect data.
Automatic Splicers: Fast, reliable, and compact splicing units that create virtually invisible joins, improving yarn quality and downstream efficiency.
High Winding Speeds: Capable of winding yarn at speeds of 1500-2200 meters/minute or even higher, leading to high productivity.
Individual Spindle Control: Each winding head operates independently, allowing for continuous operation even if one bobbin runs out or a fault occurs.
Automatic Bobbin Feeding: Systems to automatically load exhausted ring bobbins and unload empty ones.
Precise Tension Control: Electronic tensioners ensure consistent yarn tension, vital for package quality.
Centralized Monitoring & Data Collection: Sophisticated software allows operators to monitor performance, analyze fault statistics, and manage recipes from a central control panel.
Energy Efficiency: Optimized motors and drives for reduced power consumption.

V. Advantages of Effective Winding

Improved Yarn Quality: Significant reduction of objectionable yarn faults, leading to fewer fabric defects.
Enhanced Downstream Efficiency: Well-built, knot-free cones allow weaving and knitting machines to run at higher speeds with fewer stoppages (less breakages), boosting productivity.
Cost Savings: Reduces waste from faults, minimizes machine downtime in subsequent processes, and optimizes labor.
Better Package Handling: Large, stable cones are easier to transport, store, and mount on creels of weaving/knitting machines.
Value Addition: Yarn clearing and quality control at this stage add significant value to the final yarn product.

VI. Limitations and Considerations

Good Yarn Loss: While removing faults is crucial, every cut and splice means some good yarn is also lost. Optimization is key.
Energy Consumption: High-speed winding, motors, and suction systems consume significant energy.
Noise & Dust: The winding process can generate noise and fine dust/lint, requiring proper factory design and ventilation.
Maintenance: Requires regular cleaning and maintenance of clearers, splicers, and traverse systems.
Initial Investment: Modern automatic winders are a substantial capital investment.

VII. Relevance to Lahore, Pakistan

The Winding Machine is an absolutely indispensable part of virtually every spinning mill in Lahore:

Gateway to Fabric Production: As Lahore is a major textile hub with extensive weaving and knitting industries, the efficiency and quality of yarn produced by its spinning mills and then prepared by winding machines directly impacts the fabric sector. Well-wound, clear cones are essential for high-speed weaving and knitting.
Quality Standard: To meet the stringent quality demands of international apparel and home textile brands, Pakistani yarn manufacturers heavily rely on advanced electronic yarn clearers and splicers to ensure fault-free yarn.
Productivity Drivers: High-speed winders with automated features are critical for achieving the massive throughput required by large spinning complexes.
Value Addition: The winding stage is where a significant amount of value is added to the yarn by improving its quality and preparing it for seamless downstream processing.
Skilled Workforce: While automation reduces some manual labor, skilled operators are still needed for machine setup, monitoring, troubleshooting, and maintenance of these complex machines.

In summary, the Winding Machine is far more than just a rewinder; it’s a critical quality control gate and package preparation unit. By clearing faults, forming optimal packages, and enabling efficient transport, it ensures the smooth flow of yarn from the spinning mill to the weaving, knitting, or dyeing units, ultimately contributing to the quality and efficiency of the entire textile value chain.

This concludes our lecture on the Winding Machine. Next, we will discuss the Doubling/Twisting Machine, an important machine for producing plied yarns.
