Lecture 5: The Speed Frame (Roving Frame) – Attenuating and Preparing for Final Spinning

We’ve progressively refined our fibers, from the raw bale to a clean, parallelized sliver. However, the sliver from the draw frame or comber is still too thick and weak to be directly spun into yarn. It needs further attenuation and a slight twist to hold it together before the final spinning stage. This is precisely the job of the Speed Frame, also commonly known as the Roving Frame.

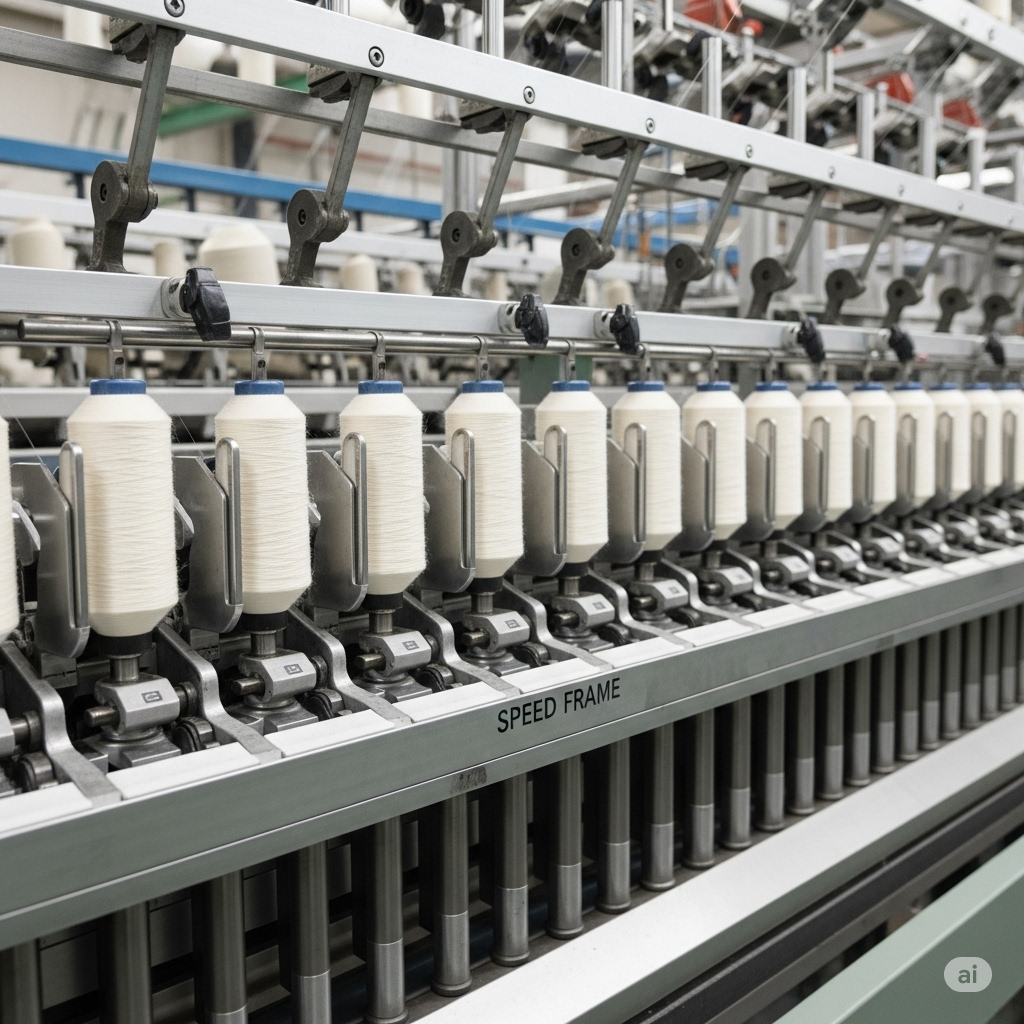

"Inside a bustling textile mill in Lahore, Pakistan, a long, sophisticated speed frame machine is actively at work. Rows of white, slightly fluffy roving bobbins are seen being wound with attenuated fibers. The complex mechanism of the machine, with its drafting rollers, flyers (though mostly obscured by the bobbins), and intricate winding system, is evident in the detailed metallic components. Multiple slivers, the input for this stage, can be seen feeding into the machine from above. The machine's label clearly indicates 'SPEED FRAME'. The scene conveys the crucial intermediate step in yarn manufacturing, where the sliver is further thinned and given a preliminary twist before the final spinning on the ring frame, a vital process for the textile industry in Lahore."

I. Introduction: The Intermediate Step to Yarn

The Speed Frame takes the thick, untwisted sliver and transforms it into a finer, slightly twisted strand called roving. This roving is then wound onto bobbins of a manageable size, making it suitable for feeding into the ring spinning machine – the final stage of yarn formation. Without the speed frame, the drafting required at the ring frame would be too high, leading to frequent breakages and poor yarn quality.

II. Objectives of the Speed Frame Process

The main objectives of the Speed Frame are:

Attenuation (Drafting): To reduce the thickness of the sliver into a much finer strand of roving. This is a crucial step in preparing the material for the fine drafting required at the ring frame.
Imparting False Twist (Pre-Twist): To insert a small, temporary amount of twist into the attenuated roving. This twist is just enough to give the roving sufficient strength to withstand the winding and unwinding tensions during subsequent handling and feeding to the ring frame, without being so strong that it hinders further drafting.
Winding onto Bobbins: To wind the attenuated and twisted roving uniformly onto bobbins. These bobbins are designed to be conveniently handled and fed into the ring spinning machine.
Sliver Blending (Minor): While not its primary role, some blending can occur if multiple slivers are fed to a single spindle, further enhancing uniformity.

III. Principle of Operation: Drafting, Twisting, and Winding

The Speed Frame is a complex machine that combines drafting, twisting, and winding actions simultaneously:

Sliver Feeding: Multiple sliver cans (usually from the draw frame or comber) are placed in the creel section of the speed frame. Each sliver is guided towards a drafting zone.
Drafting System: The sliver enters a multi-roller drafting system (typically 3 over 3 or 4 over 4 roller arrangements with pressure rollers). Similar to the draw frame, these rollers rotate at progressively increasing speeds, stretching and attenuating the sliver into roving. The draft applied here is significant (e.g., 5 to 20 times).
Twisting with Flyer: As the attenuated roving emerges from the front rollers of the drafting system, it passes through a flyer. The flyer is a rapidly rotating, U-shaped arm that rotates around the bobbin. As the flyer rotates, it inserts twist into the roving.
Winding onto Bobbin: The roving, now with twist, is then guided by the flyer’s leg onto a bobbin, which rotates on its own spindle. The winding process is complex:
- Differential Speed: The bobbin and the flyer rotate at different speeds. The difference in their speeds determines how much roving is wound onto the bobbin for each rotation.
- Building Motion: To ensure uniform winding and build a stable package, the bobbin constantly moves up and down (reciprocating motion) and its speed gradually decreases as its diameter increases (to maintain constant winding speed). This synchronized movement is controlled by a mechanism called the “building motion.”

IV. Key Features of Modern Speed Frames

High Delivery Speed: Designed for efficient production of roving.
Precise Drafting System: Advanced roller configurations and settings for uniform attenuation and minimal fiber damage.
Automatic Doffing Systems: Some modern speed frames are equipped with automatic doffing (bobbin changing) systems, which significantly reduce labor and downtime.
Integrated Monitoring Systems: Sensors monitor roving breaks and other parameters, stopping the machine immediately if an issue occurs.
Energy Efficiency: Optimized motors and drives for reduced power consumption.
User-Friendly Controls: Digital interfaces for precise control over draft, twist, and winding parameters.
Improved Bobbin Building: Mechanisms to create dense, stable roving bobbins that unwind smoothly at the ring frame.

V. Advantages of the Speed Frame

Prepares for Final Spinning: Creates a stable, manageable roving package suitable for high-speed drafting at the ring frame.
Reduces Draft at Ring Frame: By performing a significant portion of the drafting, it reduces the required draft at the ring frame, leading to fewer end breakages and higher ring frame efficiency.
Adds Strength: The inserted twist gives the roving enough strength to handle subsequent operations without falling apart.
Improves Uniformity: Further refining the evenness of the material before final spinning.
Optimizes Fiber Orientation: Further parallelizes fibers, contributing to stronger and more even yarn.

VI. Limitations and Considerations

Intermediate Process: The speed frame is an additional process, adding to the overall cost and complexity of yarn manufacturing.
Hairiness: The open nature of the roving can sometimes lead to increased hairiness if not properly managed.
Delicate Material: Roving is a relatively delicate material, susceptible to breakage if tensions or speeds are not correctly set.
Bobbin Size: The bobbins produced are generally large, and handling them (especially manual doffing) can be labor-intensive if automation is not present.
Energy Consumption: Operates continuously and consumes energy for drafting, twisting, and winding mechanisms.

VII. Relevance to Lahore, Pakistan

The Speed Frame is an essential machine in virtually every cotton spinning mill in Lahore:

Crucial for Ring Spinning: As ring spinning is the dominant technology for producing quality yarns in Pakistan, the speed frame’s role in preparing the optimal input material is indispensable.
Productivity Optimization: Mills continuously strive to optimize speed frame efficiency and bobbin size to ensure a smooth and high-volume supply of roving to their ring frames.
Quality Control: Maintaining precise settings on the speed frame is vital for yarn quality. Improper drafting or twist at this stage can lead to significant issues at the ring frame and in the final yarn.
Investment in Automation: Larger mills in Lahore are increasingly investing in speed frames with automatic doffing systems to reduce labor costs and improve overall efficiency.
Skilled Operations: Operating and maintaining speed frames, especially fine-tuning the complex drafting and winding motions, requires skilled technicians.

In summary, the Speed Frame (or Roving Frame) is the crucial intermediate step in yarn manufacturing. By effectively attenuating the sliver and adding a temporary twist, it perfectly prepares the fibers for their final transformation into strong, uniform yarn on the ring spinning machine.

This concludes our lecture on the Speed Frame. Next, we will discuss the most iconic machine in spinning: the Ring Frame, where yarn truly comes to life.
