Lecture 4: Denim Wet Processing Machines – Hydro Extractors: The Pre-Drying Powerhouse

By117176pwpadmin

Having discussed the primary washing machines, both batch and continuous, our next critical step in wet processing is the efficient removal of water from the washed garments. This is where hydro extractors come into play. Often overlooked in their significance, these machines are vital for streamlining the subsequent drying process, directly impacting energy consumption, production efficiency, and even garment quality.

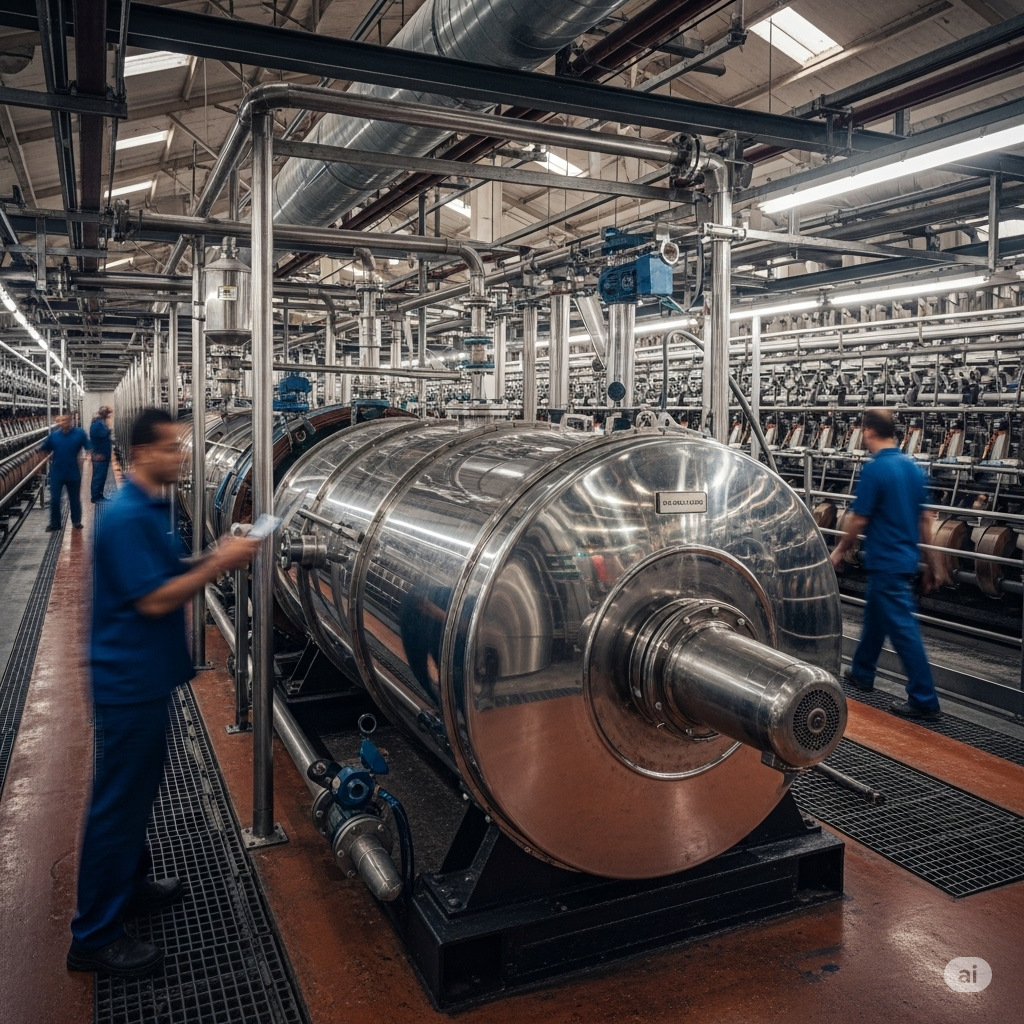

"A bright and clear wide-angle shot of a large, industrial hydro extractor in operation within a bustling textile mill in Lahore, Punjab, Pakistan. The machine, made of gleaming stainless steel, occupies the center of the frame, with its large, perforated drum clearly visible. Water is actively being extracted from denim garments inside the drum, creating a misty haze around the machine. A network of heavy-duty pipes and control panels surrounds the extractor, indicating its powerful and automated function. In the slightly blurred background, other industrial laundry machinery and a worker in motion hint at the continuous flow of a busy production line. The lighting is strong and industrial, emphasizing the machine's robust construction and critical role in dewatering denim."

I. Introduction: The Importance of Dewatering

After denim garments undergo various wet treatments – desizing, stone washing, enzyme washing, dyeing, or rinsing – they are saturated with water. This excess water must be removed before the garments can be effectively dried in tumble dryers. Hydro extractors perform this crucial dewatering task, significantly reducing the moisture content through mechanical force, rather than heat. This pre-drying step is paramount for:

  • Energy Efficiency: Removing water mechanically is far more energy-efficient than evaporating it using heat. The less water a dryer has to evaporate, the less energy it consumes.
  • Reduced Drying Time: Lower moisture content means garments spend less time in the dryer, increasing throughput and productivity.
  • Cost Savings: Directly translates to lower energy bills (gas or electricity for dryers) and faster processing, reducing overall operational costs.
  • Improved Garment Quality: Excessive tumbling in dryers can cause wear and tear. By reducing drying time, hydro extraction helps preserve garment integrity.

II. Principle of Operation: Harnessing Centrifugal Force

The working principle of a hydro extractor is based on centrifugal force.

  1. Loading: Washed and wet garments are loaded into a perforated inner basket or drum.
  2. Rotation: The inner basket is then spun at very high speeds (typically 800-1500 Revolutions Per Minute – RPM).
  3. Centrifugal Force: As the basket spins, the centrifugal force generated pushes the garments outwards against the perforated walls of the drum. The water, being denser and not held by the fabric fibers, is forced out through these perforations.
  4. Drainage: The expelled water collects in an outer casing and is then drained away, usually to the effluent treatment plant.
  5. Moisture Reduction: This process can effectively remove 60-80% of the water content from the garments, leaving them damp but no longer dripping wet. The exact residual moisture depends on the fabric type (e.g., cotton will retain more moisture than synthetics), extraction time, and RPM.

III. Types of Hydro Extractors

While the core principle is centrifugal force, hydro extractors come in different configurations for industrial use:

  1. Top-Loading (Vertical Shaft) Hydro Extractors:
    • Description: These are the most common type, featuring a vertical axis drum that is loaded from the top.
    • Features:
      • Typically standalone units.
      • Basket capacities vary widely (e.g., from 15 kg to 500 kg or more).
      • Equipped with safety interlocks to prevent operation when the lid is open.
      • Often have a “three-leg suspended structure” or a self-balancing mechanism to minimize vibration caused by uneven loads.
      • May include automatic DC braking for quick stops.
    • Usages: Widely used in all types of laundries for batch dewatering of garments, fabrics, yarn packages, etc. Highly versatile.
    • Limitations: Manual loading/unloading can be labor-intensive for very large volumes.
  2. Side-Loading (Horizontal Shaft) Hydro Extractors (often integrated):
    • Description: Less common as standalone units for general garment dewatering, but integrated “washer-extractors” (which we discussed earlier as front-loading industrial washing machines) combine washing and extraction in one drum.
    • Features: Perform both washing and high-speed spinning in the same machine, eliminating the need to transfer wet garments to a separate hydro extractor.
    • Usages: Ideal for seamless batch processing, common in laundries seeking space and labor efficiency.
    • Limitations: If the integrated extractor breaks down, both washing and extraction for that batch capacity are halted.
  3. Membrane Presses (or Squeezing/Compacting Extractors):
    • Description: While not using centrifugal force, these are advanced dewatering machines that achieve extremely low residual moisture by mechanically squeezing the water out. Garments are placed between a permeable membrane and a solid plate, and hydraulic pressure is applied.
    • Features:
      • Achieve significantly lower residual moisture (e.g., 30-50% for cotton, compared to 60-80% for centrifugal extractors), further reducing drying time.
      • Can handle large volumes continuously or in very large batches.
      • Often integrated at the end of tunnel washers for maximum efficiency.
    • Usages: High-volume operations, especially after tunnel washers, where minimal residual moisture is critical for energy savings.
    • Limitations: Higher initial cost, mechanical complexity, and may not be suitable for all fabric types (e.g., very delicate ones).

IV. Essential Features of Industrial Hydro Extractors

Regardless of type, reliable industrial hydro extractors share several key features:

  • High RPM and G-Force: Capable of high rotation speeds to maximize water extraction.
  • Stainless Steel Construction: Inner basket and outer casing are typically made of durable stainless steel (AISI 304 or 316) to resist corrosion from water and chemicals.
  • Robust Suspension/Balancing System: Critical for stability and to minimize vibrations caused by uneven loads, which can otherwise damage the machine and surrounding infrastructure. Modern machines use self-balancing mechanisms.
  • Safety Interlocks: Essential safety features that prevent the machine from operating if the lid is open or not securely locked, and automatically stop the machine if excessive vibration is detected.
  • Braking System: Efficient braking (e.g., electrical DC injection braking) to quickly stop the drum, reducing cycle time and improving safety.
  • Programmable Controls: Digital timers and controls for setting extraction time and speed, allowing for consistent results across batches.
  • Low Noise and Vibration: Modern designs aim to minimize operational noise and vibration for a better working environment.

V. Limitations

While indispensable, hydro extractors do have limitations:

  • Batch Process (for standalone units): Each load requires manual loading and unloading, which can be labor-intensive.
  • Potential for Wrinkling/Creasing: If garments are left in the extractor for too long after the cycle or are not properly unloaded, they can develop deep creases or wrinkles that are hard to remove.
  • Load Balancing: Uneven distribution of garments in the basket can lead to severe vibrations, potentially damaging the machine or even the factory floor. Operators must be trained in proper loading.
  • Noise: Despite advancements, high-speed spinning can still generate significant noise.
  • Maintenance: Requires regular inspection of bearings, motor, and balancing systems.

VI. Importance in Denim Laundry

For denim, hydro extractors are particularly vital:

  • Heavy Fabric: Denim is a relatively heavy fabric, and it absorbs a lot of water. Efficient dewatering is thus even more critical to reduce the burden on dryers.
  • Consistent Moisture: Ensures that garments enter the dryer with a consistent moisture content, leading to more uniform drying results and preventing issues like uneven shrinkage or “baked-in” wrinkles.
  • Preparation for Next Stages: If garments are going to dry processing (e.g., laser, manual scraping) after washing, they need to be adequately dewatered to facilitate these dry operations.

VII. Relevance to Lahore, Pakistan

In Lahore’s bustling textile industry, hydro extractors are ubiquitous. Every denim laundry, from small-scale operations to large export-oriented factories, relies on these machines.

  • Energy Cost Sensitivity: With energy costs being a significant factor in Pakistan, the energy-saving benefits of efficient hydro extraction are highly valued. Companies are often investing in newer models with higher RPMs and better balancing to maximize water removal and reduce drying expenses.
  • Maintenance & Local Manufacturing: There’s a strong local manufacturing base for simpler hydro extractors, but high-end, more efficient models are often imported. Maintenance and spare parts availability for these imported machines are crucial considerations for local operators.
  • Operator Training: Proper training for operators on loading and basic troubleshooting is essential to prevent machine damage and ensure consistent results.

In summary, the hydro extractor might seem like a simple machine, but its role in the efficiency, cost-effectiveness, and quality of denim processing is absolutely fundamental. It is the crucial bridge between wet washing and the energy-intensive drying process.

This concludes our lecture on hydro extractors. Next, we will move on to the drying process itself with industrial tumble dryers.

Excellent! Let’s delve into the specific brands and features of industrial hydro extractors that are crucial for textile and denim processing.

The market for industrial hydro extractors includes both global leaders known for high-tech solutions and a strong presence of regional (especially Indian and Chinese) manufacturers offering various price points and features.

Brand Names and Key Features of Industrial Hydro Extractors

I. Global/European Leaders (Known for high efficiency, durability, and advanced controls):

  1. Jensen-Group (Denmark/Global)
    • Focus: While most famous for continuous tunnel washers, Jensen also offers integrated dewatering solutions, including presses that work in tandem with their continuous systems for maximum water removal.
    • Key Features (in context of overall laundry systems):
      • High Extraction Performance: Designed to achieve very low residual moisture for maximum energy savings in subsequent drying.
      • Robust Construction: Built for continuous, heavy-duty industrial use with high-quality stainless steel.
      • Integrated Solutions: Often part of a larger, automated laundry system, ensuring seamless material flow from washing to extraction and drying.
      • Energy Efficiency: Focus on minimizing energy consumption per kg of laundry through optimized processes.
  2. Kannegiesser ETECH (Germany)
    • Focus: Similar to Jensen, Kannegiesser provides comprehensive industrial laundry solutions, including high-performance extractors and presses that integrate with their washing lines.
    • Key Features:
      • Press Technology: Often utilizes membrane presses (e.g., PowerPress) to achieve extremely low residual moisture (down to 40-45% for terry), which is superior to centrifugal extractors for certain applications.
      • Durability and Precision: German engineering ensures long lifespan and precise operation.
      • Automation: Designed for fully automated loading and unloading, reducing labor and increasing throughput.
      • Customizable: Systems can be tailored to specific textile types and desired throughputs.

II. Prominent Indian & Chinese Manufacturers (Strong presence in regions like Pakistan, offering a range of solutions from basic to advanced):

These manufacturers often provide a good balance of cost-effectiveness, reliability, and increasingly, advanced features.

  1. Stefab India Limited (India)
    • Focus: A well-recognized Indian brand in laundry and dry-cleaning machinery. They offer a range of industrial hydro extractors.
    • Key Features:
      • Robust Construction: Often features a sturdy frame (e.g., three-leg suspended model) and stainless steel inner and outer drums for durability.
      • High RPM: Designed for efficient water extraction, with basket speeds typically ranging from 750-1000 RPM depending on capacity.
      • Safety Features: Includes safety interlocks to prevent operation with open lids and often features automatic DC injection braking for quick, safe stops.
      • Self-Balancing System: Many models come with a built-in rubber buffer cushion or similar self-balancing mechanism to handle uneven loads and reduce vibration.
      • Capacity Range: Available in a wide range of capacities (e.g., 15 kg to 600 kg and above) to suit various laundry sizes.
      • Direct Drive (Optional): Some models offer direct drive motors for noiseless and vibration-free performance, eliminating V-belts.
  2. S.R. Sons Garments Equipment (India)
    • Focus: Manufacturers of various garment machinery, including hydro extractors.
    • Key Features:
      • Stainless Steel Body: Inner basket and outer casing are made from high-quality stainless steel.
      • Smooth Operation: Emphasize “silent vibration less operation” and “quick self-balancing.”
      • Electrical Controls: Features electrically controlled instrumentation for auto timing and automatic DC injection braking.
      • Protective Devices: Incorporate protection against single/reverse phasing and motor overload.
      • User-Friendly & Economical: Designed for ease of use and maintenance.
  3. Guruson International (India)
    • Focus: A manufacturer and exporter of a wide range of washing, dyeing, and finishing machines, including hydro extractors.
    • Key Features:
      • Three Legs Suspension Model: Common for stability and vibration reduction.
      • Wide Capacity Range: Offers machines from 15kg up to 600kg.
      • Direct Drive Option: Available for enhanced performance and reduced maintenance.
      • Robust Build: Designed for industrial environments.
  4. Jiangsu Sunflower Machinery Manufacturing Co., Ltd. (China)
    • Focus: A leading Chinese manufacturer of industrial and commercial laundry equipment, including various hydro extractors.
    • Key Features:
      • Stainless Steel Construction (SUS304): Machine body and inner basket made from high-quality stainless steel for durability.
      • Inverter Control (VFD): Advanced inverter control for precise speed regulation, auto timing, and automatic braking, leading to high efficiency and low energy consumption.
      • Stable and Silent Operation: Features heavy iron casting bottom stands and excellent balancing for “super silence and super balance.”
      • Pneumatic Lid Operation: For easy and safe opening/closing of the lid.
      • Large Capacity: Available in significant capacities (e.g., up to 1100kg or more for their SME series).
      • Optional Loading/Unloading Devices: Can be equipped with separate devices for convenience and fabric protection.
  5. Nagarjun International Trading Company (India)
    • Focus: Supplies various laundry machines, including hydro extractors.
    • Key Features:
      • High Water Extraction: Claims up to 75% water extraction, leading to very low moisture retention.
      • Self-Balancing: Designed to be self-balancing to minimize vibration.
      • Safety: Features like automatic basket stoppage when the top door is lifted.
      • Durable Materials: Inner and outer drums often made of SS 304 Grade stainless steel.
      • Motor Protection: Fitted with single-phase prevention and motor protecting relays.
      • VFD Option: Variable Frequency Drive (VFD) optional for adjustable drum rotation.

Common Advanced Features Across Brands (especially in higher-end models):

  • Variable Frequency Drive (VFD): Allows for precise control over drum speed, optimizing extraction for different fabric types and reducing energy consumption.
  • Automatic DC Injection Braking: For rapid and safe stopping of the drum without mechanical wear and tear.
  • Self-Balancing Technology: Advanced systems that automatically adjust to minimize vibration from uneven loads, extending machine life and improving safety.
  • Touchscreen PLCs: User-friendly interfaces for programming and monitoring extraction cycles, with diagnostic capabilities.
  • Energy Recovery Systems: Though less common than in washers, some advanced systems might incorporate minor heat recovery or motor efficiency features.
  • Robust Suspension: Heavy-duty spring or rubber buffer suspension systems to absorb vibrations.
  • Compliance: Meeting international safety standards (e.g., CE certification).

When selecting a hydro extractor for a denim laundry in Lahore, considerations would include the machine’s capacity, energy efficiency ratings, the required residual moisture level for subsequent drying, automation features, and importantly, the availability of reliable local after-sales service and spare parts from these brands or their representatives.
