Lecture 2: Denim Wet Processing Machines – Industrial Washing Machines (Batch Washers)

By117176pwpadmin

Today, we focus on the wet processing stage of denim finishing, which primarily involves various types of washing machines and related equipment. These machines are fundamental to achieving the desired soft hand-feel, faded appearance, and dimensional stability of denim garments.

I. Industrial Washing Machines (Batch Washers)

These are the workhorses of any denim laundry, designed for heavy-duty, high-volume processing.

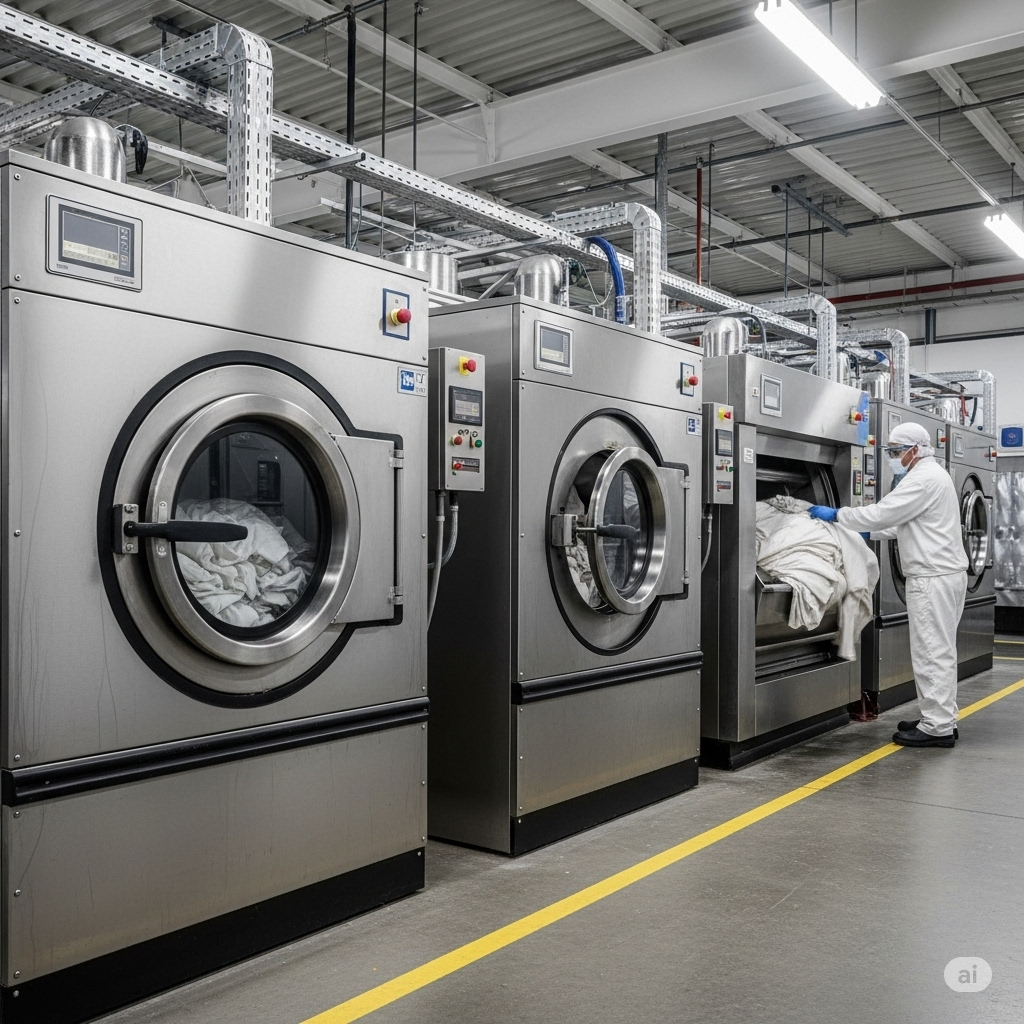

Here's an image of Industrial Washing Machines (Batch Washers)

A. Front-Loading Rotary / “Belly” Washing Machines

  • Principle of Operation: Garments are loaded into a large, perforated inner drum that rotates horizontally within a stationary outer drum. Water and chemicals are introduced into the space between the drums. The rotation and tumbling action, combined with chemicals and temperature, create mechanical abrasion and chemical reactions that lead to fading, softening, and cleaning. The inner drum also has lifters or baffles to ensure proper tumbling.
  • Features:
    • Large Capacity: Ranging from 50 kg to 500 kg or more per load, ideal for mass production.
    • Programmable Controls: Advanced microprocessors allow precise control over wash cycles, temperature, water levels, chemical dosing, and rotation speeds (RPMs). This ensures reproducibility of effects.
    • Stainless Steel Construction: Durable and resistant to harsh chemicals and high temperatures.
    • Auto-Dosing Systems: Integrated systems for automatically adding chemicals at specific times and concentrations, improving accuracy and reducing manual handling.
    • High Extraction Speeds (Hydro-extraction): Many modern machines can perform high-speed spinning within the same drum to remove a significant amount of water (up to 70-80%), reducing subsequent drying time and energy consumption.
    • Tilting Mechanism (for some): Allows the drum to tilt for easier loading and unloading of heavy wet garments.
  • Usages:
    • De-sizing: Removing sizing agents applied during weaving to prepare the fabric for further wet processes.
    • Stone Washing: Using pumice stones to create abrasion and faded effects.
    • Enzyme Washing: Using cellulase enzymes to achieve a softer feel and a “bio-fading” effect.
    • Bleaching: Using oxidizing agents (e.g., hypochlorite, hydrogen peroxide) to create lighter shades or “acid wash” effects.
    • Softening: Applying fabric softeners for a softer hand feel.
    • Tinting/Over-dyeing: Applying a light tint or a complete over-dye.
    • Neutralization & Rinsing: Removing chemical residues after various treatments.
  • Limitations:
    • Batch Process: Not continuous, meaning there are loading and unloading delays between batches.
    • Water & Energy Intensive: Despite improvements, traditional washing still consumes significant amounts of water, energy (for heating water and drying), and chemicals. This is a major environmental concern, especially in water-stressed regions.
    • Back Staining: Can occur during stone or enzyme washes, where detached indigo particles re-deposit onto the lighter areas of the fabric, especially on pocket bags or lighter threads, requiring additional chemical treatment to remove.
    • Fabric Damage: Over-processing or incorrect chemical concentrations can lead to fabric strength loss, pilling, or holes.
    • Disposal of Effluent: Wastewater containing dyes, chemicals, and fibers requires extensive treatment before discharge, which is a significant cost and regulatory challenge for mills, including those in Lahore.
    • Maintenance: Requires regular cleaning, drum inspection, and maintenance of pumps and control systems.

Leading Global Manufacturers (often with a strong presence in regions like Asia, including Pakistan):

  • Tonello (Italy): A very well-known and respected brand in the denim finishing industry, offering a wide range of industrial washing machines, including innovative solutions like ozone washing and laser integration.
  • JENSEN-GROUP (Denmark/Global): A leading global supplier of heavy-duty laundry machinery, including industrial washing machines and complete laundry systems.
  • Tolkar-Smartex (Turkey): A significant manufacturer from Turkey, known for its industrial washing machines, including those with smart technologies and sustainable features like ozone washing and nano-bubble technology.
  • Yılmaz Makina (Turkey): Another prominent Turkish brand specializing in garment washing and dyeing machines, including various types of industrial washers.
  • SperottoRimar (Italy): While also known for finishing machinery, they offer dyeing and washing ranges.
  • Böwe Textile Cleaning (Germany): Known for advanced cleaning and finishing solutions.
  • Kannegiesser ETECH (Germany): A major player in industrial laundry systems, including batch washers and continuous tunnel washers.

Other Notable Manufacturers (including those with significant regional presence in Asia):

Indian Manufacturers (e.g., from platforms like IndiaMART): India also has its own strong manufacturing base for industrial laundry equipment, with brands like Megha Laundry Equipment, Steamfab, Sara Equipments, and Naveen Engineering Industries being notable players.

Pony (Italy): Offers a range of industrial laundry and garment finishing equipment.

Primus (USA/Global): Part of Alliance Laundry Systems, they produce robust commercial and industrial laundry equipment.

Milnor (USA): Known for large-capacity industrial laundry machines.

Forenta (USA): While more known for pressing equipment, some manufacturers offer integrated laundry solutions.

Chinese Manufacturers (e.g., from platforms like Made-in-China.com or Alibaba): There are numerous Chinese manufacturers that produce industrial washing machines, often at competitive price points. While specific brand names might be less globally recognized, companies like Jiangsu Sunflower Machinery, Hangxing Washing Machine (Taizhou), and Qingdao Yuanquan Machinery are examples you might encounter.
