Lecture 14: Automated Sorting & Conveying Systems: The Backbone of Factory Efficiency

We’ve explored the individual workhorses of denim finishing, from washers and dryers to specialized dry processing machines. Today, for our final dedicated machine lecture, we’ll look at the unsung heroes that connect all these dots: Automated Sorting and Conveying Systems. These aren’t machines that directly process the denim, but they are absolutely critical for a modern, efficient, and high-throughput denim finishing factory.

I. Introduction: Seamless Movement for Optimized Production

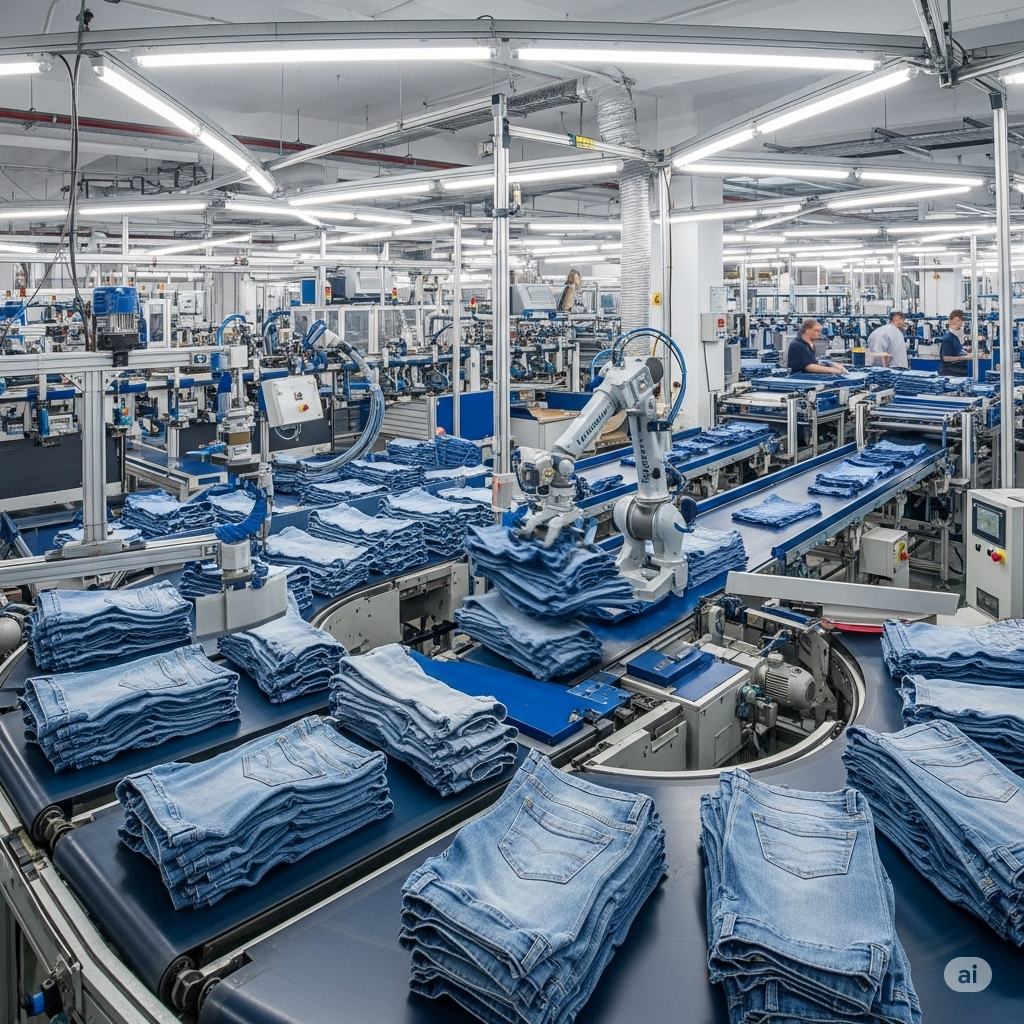

In a large-scale denim laundry, garments need to move through numerous stages, often across different sections of the factory. Manually moving hundreds or thousands of jeans per hour is labor-intensive, slow, prone to errors, and can damage garments. Automated sorting and conveying systems are the intelligent logistics networks that ensure garments flow smoothly, quickly, and accurately from one process to the next, optimizing the entire production line.

II. Principle of Operation: Programmed Movement and Organization

These systems utilize a combination of mechanical structures, digital controls, and sometimes robotics to transport, identify, and sort garments automatically.

1. Transport Mechanisms:
   • Overhead Conveyors: Garments are hung on hangers or clamps and moved along overhead rails, often with power-and-free systems that allow individual hangers to stop, accumulate, or divert.
   • Belt Conveyors: Flat belts transport folded garments or baskets of garments between stations.
   • Shuttle Systems: Automated carts or shuttles that move along tracks, picking up and dropping off batches of garments at specific points.
   • Vertical Carousels/Lifts: Used to transport garments between different floor levels.
2. Identification & Tracking: Each garment or batch is often tagged (e.g., with RFID chips or barcodes) and scanned at key points. This allows the system to:
   • Identify the specific wash recipe or process sequence for that garment.
   • Track its location in real-time.
   • Direct it to the correct next processing station.
3. Sorting & Diversion: Based on the programmed sequence or current station availability, the system automatically sorts garments and diverts them to the appropriate next machine (e.g., specific dryer, laser machine, or packing area).
4. Buffering & Accumulation: Conveyor lines can include buffer zones or accumulation areas where garments can temporarily queue if a downstream machine is busy, preventing bottlenecks and ensuring continuous flow.
5. Integration with Machines: These systems are often fully integrated with the processing machines, automatically loading into washers, dryers, or even presenting garments to robotic arms for dry processes, and then unloading them once the process is complete.

III. Key Features of Automated Sorting & Conveying Systems

• Modular Design: Systems are typically built from modular components, allowing for customization and expansion to fit different factory layouts and production needs.
• Intelligent Control Software: Centralized software manages the entire flow, tracks inventory, optimizes routing, and provides real-time data on production status.
• Automated Load/Unload Interfaces: Robotic or mechanical arms that seamlessly transfer garments between conveyors and processing machines (e.g., loading into tunnel washers, unloading from dryers).
• RFID/Barcoding Technology: For precise garment identification and tracking throughout the entire finishing line.
• Sorting Gates & Diverters: Mechanisms that automatically direct garments to specific lines or destinations based on their processing requirements.
• Buffer & Accumulation Zones: Designed to absorb fluctuations in throughput and prevent line stoppages.
• Safety Sensors: Proximity sensors, emergency stops, and light curtains to ensure worker safety around moving parts.
• Scalability: Ability to be expanded to handle increasing production volumes.

IV. Usages and Benefits

Automated sorting and conveying systems bring numerous advantages to a denim finishing plant:

• Increased Efficiency & Throughput: Reduces handling time between processes, ensures continuous flow, and significantly boosts overall production capacity.
• Reduced Labor Costs: Minimizes the need for manual transport, allowing staff to focus on skilled tasks like quality control or machine operation.
• Improved Consistency & Quality: Reduces human error in sorting and ensures garments follow the correct processing sequence, leading to more consistent finished products.
• Minimized Garment Damage: Automated handling is often gentler and more consistent than manual handling, reducing damage to garments during transport.
• Real-time Tracking & Data: Provides valuable insights into production bottlenecks, cycle times, and overall efficiency, enabling better management decisions.
• Optimized Space Utilization: Overhead conveyors, in particular, free up valuable floor space.
• Enhanced Safety: Reduces repetitive strain injuries and other hazards associated with manual material handling.

V. Limitations and Considerations

• High Initial Investment: Installing a comprehensive automated system requires a significant capital outlay.
• Complexity: Designing, implementing, and maintaining these systems requires specialized engineering and technical expertise.
• Integration Challenges: Needs seamless integration with various processing machines, which can be complex.
• Rigidity: Once installed, reconfiguring the layout can be costly and time-consuming, requiring careful initial planning.
• Downtime Impact: A breakdown in a critical part of the conveying system can halt the entire production line.

VI. Relevance to Lahore, Pakistan

The adoption of automated sorting and conveying systems is a clear indicator of modernization within Lahore’s denim industry:

• Competitiveness: For large export-oriented factories in Lahore, these systems are becoming essential to compete on a global scale, offering the efficiency and reliability demanded by international buyers.
• Labor Transformation: While reducing the need for unskilled material handlers, it creates demand for skilled technicians, engineers, and software operators to manage these advanced systems. This pushes for upskilling the workforce.
• Efficiency Drives Profitability: As energy and labor costs rise, optimizing every aspect of the production flow becomes critical for maintaining profitability.
• Scaling Production: These systems enable factories to handle much larger orders more efficiently, without proportionally increasing the manual workforce.
• Smart Factory Vision: They are a fundamental component of the “Smart Factory” concept, allowing for data-driven decision-making and a more integrated, intelligent production environment.

In conclusion, while they may not transform the look of denim directly, automated sorting and conveying systems are the silent workhorses that enable modern denim finishing factories to operate with unparalleled efficiency, precision, and safety, making them a crucial investment for any large-scale operation aiming for global competitiveness.

---

This concludes our detailed look at the various machines and systems used in denim wet and dry processing. We’ve journeyed from fundamental washing to cutting-edge laser technology and the logistics that tie it all together.

Now, for our final part, let’s summarize the overarching future trends and sustainable directions that are shaping the denim finishing industry, and then we’ll open the floor for questions.
