Lecture 12: Spraying/Dyeing Cabinets: Adding Targeted Color and Effect

So far in our dry processing journey, we’ve focused on removing color (fading, distressing) or setting physical effects (3D creases). Today, we’ll look at machines that are used to add color or specific chemical effects to denim garments in a highly targeted manner: Spraying/Dyeing Cabinets. These are versatile tools that allow for creative variations beyond the standard blue.

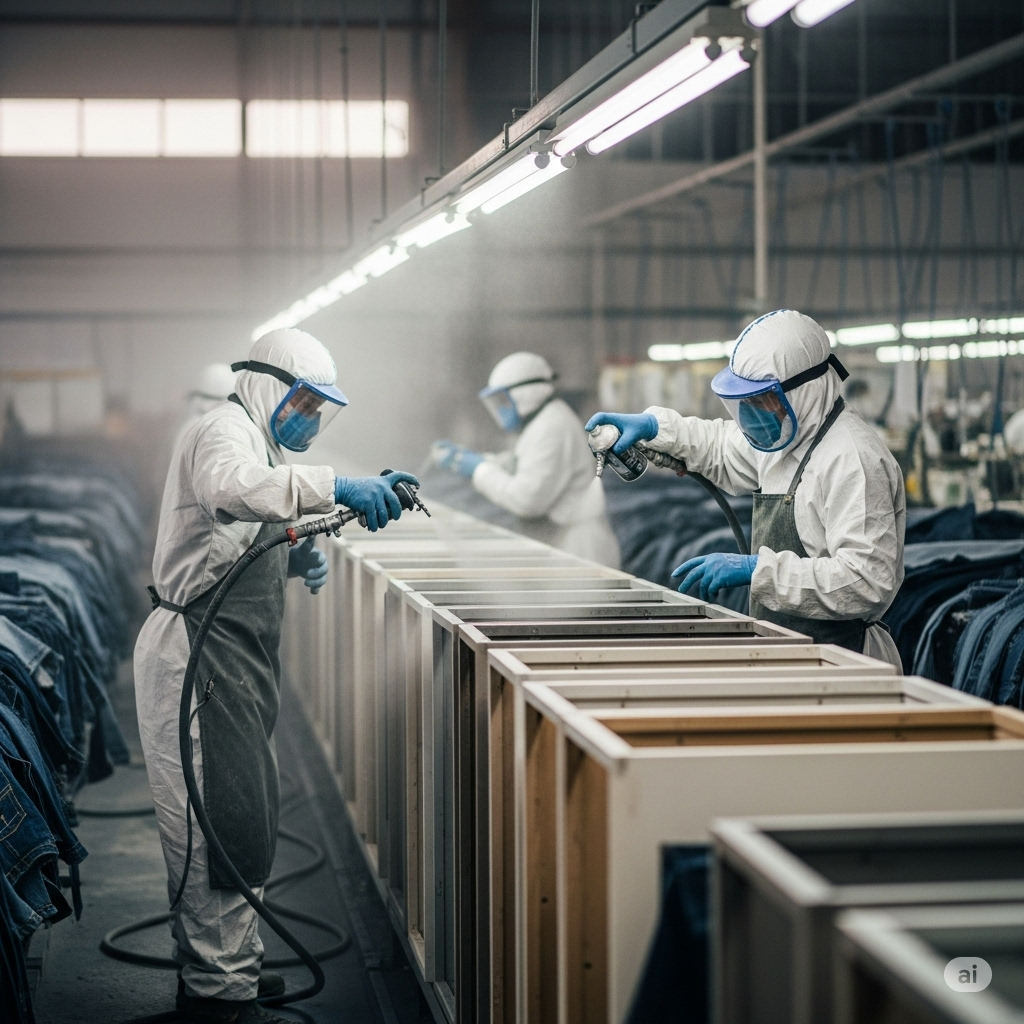

"Inside a brightly lit section of a denim finishing factory in Lahore, Pakistan, three workers fully clad in white protective suits, including hooded coveralls, respirators with clear face shields, and blue gloves, are engaged in a spraying process. They stand on either side of long, low rectangular containers, appearing to apply a mist from handheld spray guns onto what might be denim garments or components laid out inside. A noticeable haze of the sprayed substance hangs in the air under the fluorescent lighting, indicating an active application. Exhaust ventilation ducts are likely present but not prominently visible, suggesting efforts to manage fumes and overspray. Rows of neatly stacked folded denim garments are visible in the blurred background, indicating the scale of production and the integration of this spraying process within the overall finishing workflow in the Lahore-based facility."

I. Introduction: Precision Application of Color and Chemicals

While large-scale dyeing happens at the fabric stage, and garment dyeing happens in washing machines, spraying/dyeing cabinets are designed for localized, precise application of various solutions onto individual garments. This allows manufacturers to achieve unique aesthetic effects, such as tinted washes, vintage yellowing, localized color accents, or the application of specific finishes that require even coating.

II. Principle of Operation: Controlled Mist Application

The core principle involves atomizing a liquid solution (dye, tint, resin, or other chemicals) into a fine mist and applying it evenly or selectively onto a garment placed within a contained environment.

Garment Preparation: Garments are typically loaded onto inflatable air dummies or rigid mannequins inside a spray booth or cabinet. This stretches the garment smoothly and provides a stable surface for application, ensuring all targeted areas are accessible.
Solution Preparation: The desired chemical solution – whether it’s a dye, a tint, a resin, a softener, or a special effect chemical – is prepared according to precise recipes. The concentration and viscosity are crucial for achieving the desired effect and proper spray consistency.
Spray Application: An operator uses a spray gun (manual or sometimes automated) to apply the solution. The gun atomizes the liquid into a fine mist, which is then directed onto the garment. The operator’s skill ensures even coverage or targeted application as required.
Containment and Ventilation: The spraying process takes place within an enclosed cabin or booth equipped with powerful exhaust and filtration systems. This is vital to capture overspray, chemical fumes, and airborne particles, protecting workers and preventing environmental contamination.
Fixation/Drying (Post-Application): Depending on the chemical applied, the garment might then undergo a subsequent process.
- Dye/Tint: May require a light curing or drying cycle to fix the color.
- Resins: Would proceed to a curing oven (as discussed in Lecture 12).
- Softeners/Finishes: Would typically go to a dryer.

III. Key Features of Spraying/Dyeing Cabinets

Enclosed Spray Booth: A dedicated, sealed chamber made of corrosion-resistant materials (e.g., stainless steel) to contain the spray and fumes.
Powerful Exhaust & Filtration System: High-capacity fans and multi-stage filters (dry and/or wet scrubbers, carbon filters) are essential to ensure air quality and capture chemical overspray.
Air Dummies/Mannequins: Inflatable or fixed forms that hold the garments, allowing for precise and even application. Often rotatable or movable for operator convenience.
Professional Spray Guns: High-quality, ergonomic spray guns designed for fine mist generation and precise control over spray pattern and volume.
Solution Tanks & Pumps: Systems for holding and delivering the chemical solutions to the spray gun, often with agitators to keep solutions well-mixed.
Lighting: Bright, even internal lighting within the booth to allow operators to clearly see the application process.
Safety Features: Emergency stop buttons, interlocks on doors, and alarms for system malfunctions.
Automated Options: Some advanced systems feature robotic arms equipped with spray nozzles for highly consistent and automated application of solutions, especially for repetitive patterns or full coverage.

IV. Usages and Effects Achieved

Spraying/Dyeing Cabinets are incredibly versatile for achieving diverse aesthetic outcomes:

Localized Tinting/Yellowing: Applying a subtle yellow or brown tint to specific areas to create a vintage, aged look.
Spot Dyeing/Color Blocking: Applying a specific color to defined areas to create contrasting panels or unique design elements.
Resin Application: Precisely applying resins for 3D effects or specific hand-feels (as discussed in Lecture 12).
Water Repellent/Stain Resistant Finishes: Applying functional finishes that improve garment performance.
Softeners/Silicones: Spraying softeners to enhance the hand-feel, particularly after harsh dry processes.
Bleach Spotting: Though less common now due to PP/laser, localized bleach can be applied for specific spots.

V. Advantages

Targeted Application: Allows for very precise and localized chemical or color application, minimizing waste and creating unique effects.
Versatility: Can be used for a wide range of chemical solutions and aesthetic outcomes.
Reduced Overall Chemical Use: Compared to batch dyeing, only the required amount of chemical is applied to specific areas, reducing overall consumption.
Design Flexibility: Enables creative designers to introduce new visual dimensions to denim.

VI. Limitations and Considerations

Chemical Handling: Involves the direct handling and spraying of various chemicals, necessitating strict safety protocols, comprehensive worker training, and mandatory use of appropriate Personal Protective Equipment (PPE) (respirators, chemical-resistant gloves, protective clothing, eye protection).
Fume Management: High-performance exhaust and filtration are paramount to protect worker health and prevent air pollution.
Inconsistency (Manual): Manual spraying relies heavily on operator skill, potentially leading to inconsistencies between garments in large batches. Automated systems mitigate this.
Labor Intensive: Can be a time-consuming and labor-intensive process, especially for complex designs or full-garment coverage.
Effluent & Waste: Overspray and cleanup generate chemical waste that requires proper collection and disposal/treatment.

VII. Relevance to Lahore, Pakistan

Spraying/Dyeing Cabinets are an integral part of the denim finishing landscape in Lahore:

Meeting Fashion Demands: The ability to add specific tints, localized colors, and functional finishes allows Pakistani manufacturers to cater to diverse and evolving global fashion trends.
Skilled Labor: The manual application aspects of spraying rely on a readily available and skilled workforce in Lahore, though training for safety and consistency is crucial.
Safety & Environmental Compliance: Ensuring proper ventilation, adequate PPE, and responsible chemical management are critical for factories, particularly those exporting to international markets with strict environmental, social, and governance (ESG) requirements. There is ongoing pressure for factories to invest in better extraction and filtration systems.
Automation Adoption: Larger and more progressive factories are exploring and investing in automated spray booths with robotic arms to improve consistency, efficiency, and worker safety for high-volume orders.
Value Addition: These localized chemical applications add significant value and uniqueness to denim garments, helping manufacturers achieve higher price points.

In essence, spraying/dyeing cabinets, whether manual or automated, provide denim manufacturers with the precision tools to add specific colors and functional finishes, enhancing the aesthetic appeal and performance of the final garment while demanding strict adherence to safety and environmental best practices.

This concludes our lecture on Spraying/Dyeing Cabinets. Next, we will discuss Misting/Humidifying Systems, important for controlling moisture content in dry processes.
