Lecture 1: The Blow Room – The First Step in Yarn Manufacturing: Opening, Cleaning, and Blending

---

Welcome to our new lecture series on spinning mill machines. Just as we explored the intricate world of denim finishing, we’ll now delve into the fascinating process of how raw fibers are transformed into yarn – the fundamental building block of all textiles. We’ll examine each machine in sequence, understanding its purpose, function, and importance in achieving high-quality yarn.

Today, we begin at the very beginning of the spinning process: the Blow Room.

I. Introduction: From Bale to Tuft – The Foundation of Quality

Raw cotton, as it arrives at the spinning mill, is in the form of highly compressed bales. These bales contain not only cotton fibers but also a significant amount of impurities (trash, dust, broken seeds, leaf particles, etc.) picked up during harvesting and ginning. The fibers themselves are tightly matted together.

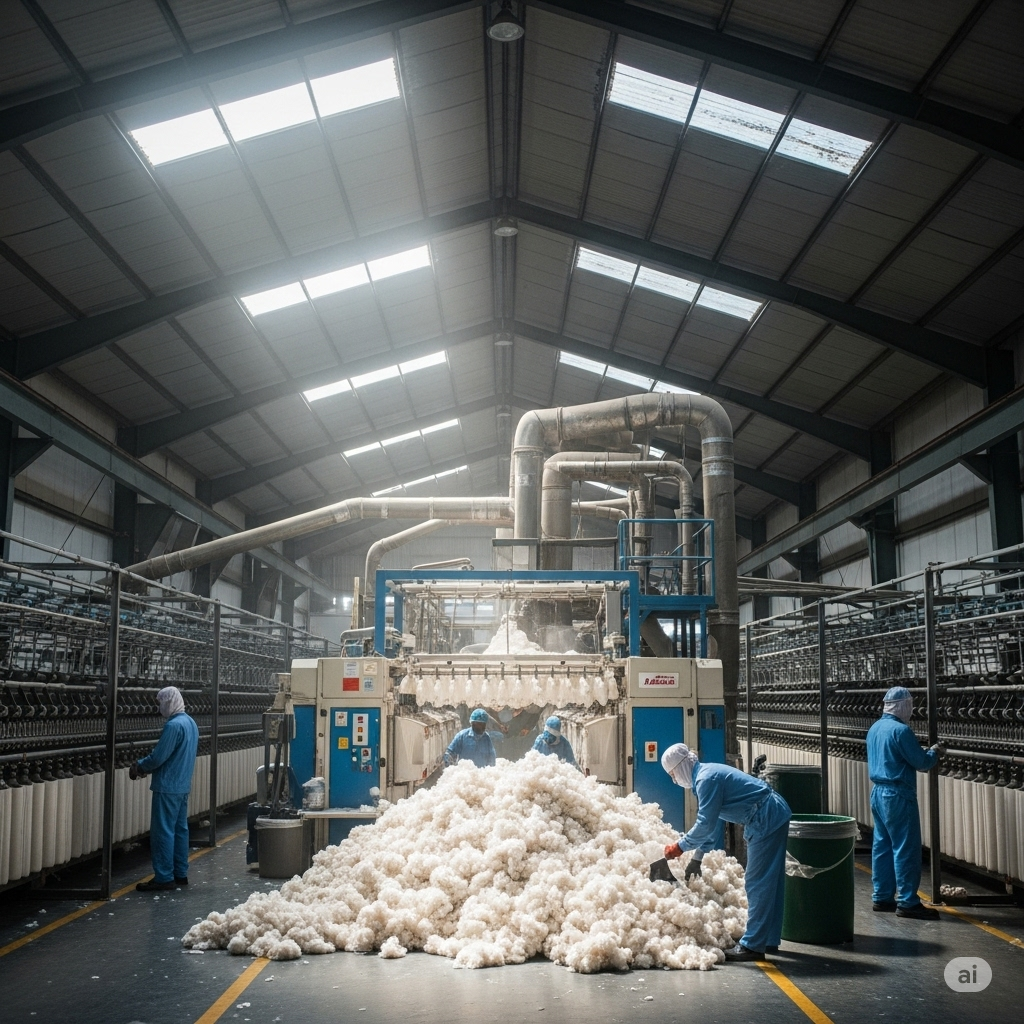

The Blow Room is the very first section in a spinning mill. It’s a series of machines designed to take these dense, impure cotton bales and perform the initial, crucial steps of opening, cleaning, and blending the fibers, preparing them for subsequent processes like carding. The term “blow room” originates from the fact that fibers are often transported from machine to machine within this section using air currents.

II. Objectives of the Blow Room

The primary objectives of the blow room process are:

1. Opening: To loosen the highly compressed cotton bales into small, individualized tufts of fibers. This is crucial because only well-opened material can be effectively cleaned.
2. Cleaning: To remove a significant portion (typically 40-70%) of the undesirable impurities like trash, dust, dirt, broken seeds, and other foreign matter from the cotton fibers.
3. Blending/Mixing: To mix fibers from different bales or even different varieties of cotton thoroughly. This is essential for achieving a uniform blend, which helps to equalize variations in natural fiber quality and ensures consistent yarn characteristics throughout the production.
4. Dust Removal: To remove fine dust particles, which are often embedded within the fiber mass.
5. Even Feeding: To prepare the opened, cleaned, and blended fibers in a uniform manner, either as a continuous lap (a thick sheet of fibers) or in a controlled flock form, for consistent feeding to the next stage – the carding machine.
6. Contamination Removal: Modern blow rooms also include sophisticated detectors for removing foreign fibers (e.g., colored fibers, polypropylene contamination) and metallic objects.

III. Machines in a Typical Blow Room Line (Sequence)

A modern blow room is not a single machine but a series of interconnected machines that work progressively. The exact sequence and types of machines can vary based on the raw material, desired yarn quality, and machinery manufacturer, but a common sequence includes:

1. Bale Opener / Bale Plucker (e.g., Truetzschler Blendomat, Rieter Unifloc):
   • Function: This is the first machine that interacts with the compressed bales. It automatically plucks small tufts of cotton from multiple bales laid out in a sequence (bale lay-down). This initial opening is gentle to avoid fiber damage.
   • Principle: A rotating plucking head with spiked rollers traverses across the bale lay-down, pulling off small tufts. This ensures a consistent blend by drawing from multiple bales simultaneously.
   • Key Features: Automated bale plucking, large working widths, and sometimes a weighing system for precise blending.
2. Pre-Cleaner / Coarse Cleaner (e.g., Truetzschler Pre-Cleaner CL-P, Rieter Uniclean):
   • Function: To further open the tufts from the bale opener and remove larger, heavier impurities (e.g., stones, large leaf fragments, heavy seed particles).
   • Principle: Involves beating actions and grid bars. Rotating beaters (often spiked or bladed) strike the cotton tufts against grid bars, causing heavier impurities to fall out due to centrifugal force and gravity.
   • Key Features: Adjustable grid bars for optimizing cleaning efficiency and minimizing good fiber loss.
3. Multi-Mixer / Blending Machine (e.g., Truetzschler Multimixer MX-U, Rieter Unimix):
   • Function: To achieve intimate blending of different cotton bales or fiber types by thoroughly mixing the opened tufts. This is crucial for yarn uniformity.
   • Principle: Cotton tufts are fed into multiple vertical or horizontal chambers. The system then withdraws material evenly from all chambers, ensuring a homogeneous blend. This compensates for natural variations in raw cotton quality.
   • Key Features: Multiple blending chambers (e.g., 6 or 10), controlled material transport, and sometimes integrated weighing for precise blending ratios.
4. Fine Cleaner / Intensive Cleaner (e.g., Truetzschler Cleanomat CL-C, Rieter Uniflex):
   • Function: To further open the tufts into even smaller sizes (down to individual fibers) and remove finer impurities (e.g., dust, smaller leaf particles, seed fragments) that were not removed by the coarse cleaner.
   • Principle: Utilizes more intense beating actions with finer spiked rollers or saw-tooth wire cylinders, often working against grid bars or mote knives. This action separates fibers and dislodges smaller impurities.
   • Key Features: Advanced beating mechanisms, adjustable grid bar settings, and often integrated dust extraction.
5. Dust Remover (Optional, e.g., Truetzschler Dustex DX):
   • Function: A specialized machine, often placed towards the end of the blow room line, dedicated specifically to removing micro-dust and very fine impurities that remain after cleaning.
   • Principle: Uses strong air currents and specific filtration mechanisms to separate fine dust from the opened fibers.
   • Key Features: High-efficiency dust collection and filtration systems.
6. Metal & Foreign Part Detectors (Integrated throughout):
   • Function: Crucial for safety and quality, these detectors identify and remove metallic objects (which can cause sparks and fires) and foreign fibers (like colored threads, polypropylene).
   • Principle: Utilizes sensors (e.g., optical, inductive) to detect contaminants and then pneumatic nozzles to blow them out of the fiber stream.
   • Key Features: High detection accuracy, rapid ejection mechanisms, and fire detection/suppression systems.
7. Condenser / Chute Feed System:
   • Function: The final stage in the blow room. The condenser collects the opened, cleaned, and blended fiber tufts and forms them into a continuous, uniform lap (for older carding machines) or, more commonly in modern mills, directly feeds them as a continuous, even batt of loose fibers to the carding machine via an air chute.
   • Principle: Uses air suction to draw fibers onto a perforated screen or drum, forming a consistent web or lap.
   • Key Features: Ensures uniform feeding pressure and density for the subsequent carding process.

IV. Advantages of a Well-Functioning Blow Room

• Improved Yarn Quality: Effective cleaning and blending lead to more uniform, cleaner yarn with fewer defects.
• Reduced Processing Problems: Removes impurities that could cause breakages or defects in subsequent machines.
• Cost Savings: While there is some good fiber loss, proper cleaning reduces wear and tear on downstream machinery and minimizes waste in later stages.
• Increased Efficiency: Provides a consistent feed to the carding machine, ensuring smooth operation.
• Safety: Metal and foreign part detectors prevent damage to machinery and reduce fire risks.
• Consistency: Blending ensures uniformity from bale to bale and batch to batch.

V. Limitations and Considerations

• Good Fiber Loss: Despite efforts, some good fibers are always lost along with impurities during the aggressive opening and cleaning processes. Optimizing machine settings is crucial to minimize this.
• Fiber Damage: Over-aggressive opening or beating can cause damage to fibers, leading to shorter fiber lengths and affecting yarn strength. Careful selection and setting of machines are vital.
• Dust & Lint: Despite extraction, the blow room can be a dusty environment, requiring robust dust collection systems and proper ventilation.
• Energy Consumption: Blow room machines, particularly fans for air transport and beaters, consume significant energy.

VI. Relevance to Lahore, Pakistan

The Blow Room is the foundational element for any spinning mill in Lahore:

• Raw Material Quality: Pakistan’s spinning industry processes a wide range of cotton qualities, both local and imported. A robust blow room is essential to handle varying impurity levels and prepare the fiber effectively.
• Investment in Technology: Modern mills in Lahore are investing in state-of-the-art blow room lines from international manufacturers (e.g., Truetzschler, Rieter) to achieve higher cleaning efficiency, reduce good fiber loss, and ensure cleaner, more uniform yarn for competitive global markets.
• Sustainability: Reducing waste (good fiber loss) and managing dust effectively are key sustainability goals for Pakistani mills, aligning with global textile industry standards.
• Health & Safety: Ensuring a clean and safe working environment in the blow room, with effective dust extraction and PPE for workers, is a continuous focus for compliance and worker well-being.

In conclusion, the Blow Room might seem like a simple start, but it sets the stage for the entire yarn manufacturing process. Its effectiveness in opening, cleaning, and blending directly impacts the quality, consistency, and profitability of the final yarn.

---

This concludes our first lecture on Blow Room machinery. Next, we will move on to the Carding Machine, where the individualized fibers truly begin their transformation into a coherent sliver.
