Introduction to Textile Wastewater Challenges and Reuse Imperatives: Lecture 1

May 22, 2025 117176pwpadmin 0
Categories : Uncategorized

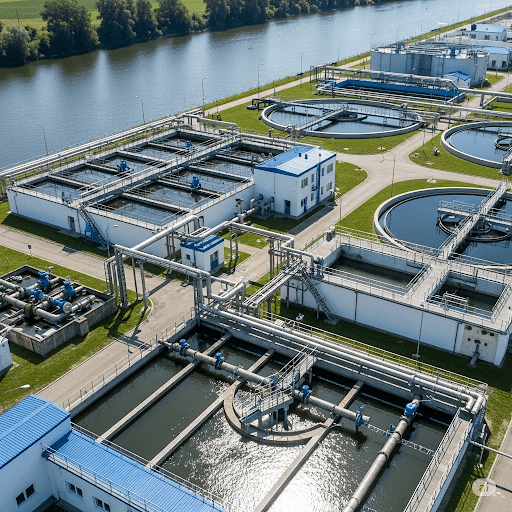

A wide aerial shot shows a sprawling water treatment plant. The plant consists of numerous large, rectangular and circular concrete basins filled with varying shades of water, interconnected by a network of pipes and walkways
  • 1.1. The Textile Industry & Water Footprint:
    • Overview of water consumption in different textile processes (desizing, scouring, bleaching, mercerizing, dyeing, printing, finishing).
    • Environmental impact of high water demand.
  • 1.2. Characteristics of Textile Wastewater:
    • Sources: Pretreatment baths, dyeing baths, washing waters, finishing baths.
    • Pollutants:
      • High COD/BOD: Residual dyes, chemicals, sizing agents, natural impurities.
      • High Color: Unfixed dyes, dye auxiliaries.
      • High Salinity: Electrolytes used in dyeing (e.g., NaCl, Na2SO4).
      • Variable pH: Highly acidic from pretreatment (scouring, bleaching) to alkaline from dyeing.
      • Suspended Solids (TSS): Fiber fragments, insoluble chemicals.
      • Heavy Metals: From certain dyes or mordants (less common now, but still a concern).
      • Toxicity: From certain dye classes, mordants, or auxiliaries.
      • Temperature: Often high, especially from hot dyeing baths.
  • 1.3. Drivers for Water Reuse in Textiles:
    • Environmental Regulations: Stricter discharge limits.
    • Water Scarcity: Increasing pressure on freshwater resources.
    • Economic Benefits: Reduced water purchase costs, lower discharge fees, recovery of heat/chemicals (in some cases).
    • Corporate Social Responsibility (CSR): Brand image, sustainability goals.
  • 1.4. Water Quality Requirements for Textile Reuse:
    • What parameters are critical for different textile processes (e.g., color, hardness, TDS, COD, pH)?
    • Why can’t raw treated effluent be directly reused?
    • Discussion of typical reuse standards.

Lecture 2: Primary Treatment – Removing Bulk Pollutants

  • 2.1. Equalization & pH Correction:
    • Purpose: To normalize flow and pollutant concentration fluctuations (especially pH and color) for consistent downstream treatment.
    • Design Considerations: Tank volume, mixing, aeration.
    • pH Adjustment: Use of acids (H2SO4) or bases (NaOH, Ca(OH)2) to bring pH to optimal range for coagulation/flocculation.
  • 2.2. Coagulation & Flocculation:
    • Principles:
      • Coagulation: Destabilizing charged particles (dyes, colloids) using chemical coagulants (e.g., Alum, Ferric Chloride, Polyaluminum Chloride – PAC). Mechanism of charge neutralization, adsorption, and bridging.
      • Flocculation: Agglomeration of destabilized particles into larger, settleable flocs through gentle mixing.
    • Common Coagulants & Flocculants: Types, advantages, disadvantages.
    • Optimizing the Process: Jar test procedures for determining optimal coagulant dose and pH.
    • Pollutant Removal: Significant reduction in color, TSS, and some COD.
  • 2.3. Sedimentation/Clarification:
    • Purpose: To separate the formed flocs from the treated water by gravity.
    • Types of Settlers: Conventional clarifiers, lamella clarifiers (compact design).
    • Sludge Handling: Collection, thickening, and onward processing of primary sludge.
  • 2.4. (Optional) Flotation (DAF – Dissolved Air Flotation):
    • Principle: Introducing fine air bubbles to lift suspended solids, oils, and some dyes to the surface for skimming.
    • When to Use: Effective for lower density solids, oil/grease, and achieving better clarity than sedimentation alone.
    • Design and Operation: Air saturation, pressure release.

Lecture 3: Secondary Treatment – Biological Degradation

  • 3.1. Principles of Biological Treatment:
    • Aerobic vs. Anaerobic Processes: When each is suitable for textile wastewater.
    • Microbial Metabolism: Role of bacteria in breaking down organic pollutants (BOD, COD).
    • Factors Affecting Biological Treatment: Temperature, pH, nutrient balance (C:N:P), dissolved oxygen.
  • 3.2. Activated Sludge Process:
    • Description: Most common aerobic biological treatment. Reactor, aeration system, secondary clarifier, sludge return.
    • Variants: Conventional, Extended Aeration, Sequencing Batch Reactor (SBR).
    • SBR Specifics: Advantages for variable flows and loads, single-tank operation (fill, react, settle, draw).
    • Pollutant Removal: Significant reduction in BOD/COD, some color reduction (especially for biodegradable dyes).
  • 3.3. Biological Filters (Trickling Filters, Rotating Biological Contactors – RBCs):
    • Description: Fixed-film biological systems.
    • Advantages/Disadvantages: Robust, less energy intensive than activated sludge, but may have lower removal efficiencies for complex compounds.
  • 3.4. Membrane Bioreactors (MBRs):
    • Integration: Combining activated sludge with membrane filtration (microfiltration or ultrafiltration).
    • Advantages: High quality effluent, smaller footprint, complete retention of biomass, higher MLSS, lower sludge production.
    • Challenges: Fouling, energy consumption.
    • Pollutant Removal: Excellent TSS, BOD/COD removal, some color. Producing effluent suitable for subsequent advanced treatment.

Lecture 4: Tertiary/Advanced Treatment – Polishing for Reuse

  • 4.1. The Need for Tertiary Treatment for Reuse:
    • Why primary and secondary treatment are often insufficient for textile reuse.
    • Focus on removing residual color, salinity, refractory COD, and specific contaminants.
  • 4.2. Adsorption (Activated Carbon):
    • Principle: Removal of organic pollutants (dyes, refractory COD) by adsorption onto the surface of activated carbon (powdered or granular).
    • Mechanism: Surface chemistry, pore structure.
    • Regeneration/Disposal: Carbon exhaustion and options.
    • Pollutant Removal: Excellent for residual color and many organic compounds.
  • 4.3. Advanced Oxidation Processes (AOPs):
    • Principle: Generation of highly reactive hydroxyl radicals (OH•) to non-selectively oxidize persistent organic pollutants, including dyes.
    • Common AOPs:
      • Ozonation (O3)
      • UV/H2O2
      • Fenton (Fe2+/H2O2)
      • Photo-Fenton
    • Advantages: Effective for refractory compounds and color, can reduce COD.
    • Challenges: High operating cost, potential for byproduct formation.
  • 4.4. Membrane Filtration (Focus on RO/NF):
    • Ultrafiltration (UF): (Often part of MBRs or standalone for larger molecules, colloids, TSS) – removes suspended solids, bacteria, viruses, large macromolecules.
    • Nanofiltration (NF): (Typically for multivalent ions, some organic molecules, color) – Partial desalination, good for color and hardness removal.
    • Reverse Osmosis (RO):
      • Principle: Applying pressure to overcome osmotic pressure, forcing water through a semi-permeable membrane, leaving behind dissolved solids (salts, dyes, low MW organics).
      • Application for Textile Reuse: Crucial for achieving very low TDS/salinity and high-quality permeate suitable for dyeing processes.
      • Challenges: High energy consumption, membrane fouling (requires robust pretreatment upstream), concentrate management (brine).
      • Pretreatment for RO: Why robust UF/MF is often needed before RO.

Lecture 5: Sludge Management & System Integration for Reuse

  • 5.1. Sludge Management:
    • Sources of Sludge: Primary, secondary (biological), chemical (coagulation/flocculation), membrane concentrate.
    • Characterization: High water content, presence of chemicals, dyes, heavy metals.
    • Treatment Technologies:
      • Thickening: Gravity thickeners, DAF.
      • Dewatering: Belt filter presses, filter presses, centrifuges.
      • Stabilization: Anaerobic digestion (for organic sludge), lime stabilization.
    • Disposal/Valorization: Landfilling (decreasingly viable), incineration, co-processing, potential for beneficial reuse (e.g., compost – highly dependent on composition).
  • 5.2. System Integration & Optimization for Reuse:
    • Process Flow Diagrams (PFDs): Illustrating typical treatment trains for textile wastewater reuse (e.g., Equalization -> Coagulation/Flocculation -> Sedimentation -> Activated Sludge/MBR -> UF -> RO).
    • Energy Consumption: Assessing the energy footprint of different technologies.
    • Chemical Consumption: Managing coagulants, pH adjusters, antiscalants, disinfectants.
    • Automation & Control: Monitoring key parameters (pH, ORP, DO, flow, conductivity, turbidity, color).
    • Economics of Water Reuse: Cost-benefit analysis, payback period.
  • 5.3. Case Studies & Emerging Technologies:
    • Examples of successful textile wastewater reuse plants.
    • Discussion of novel or advanced technologies (e.g., electrochemical oxidation, supercritical water oxidation, hybrid systems).
    • Future trends in textile wastewater treatment and water circularity.
  • 5.4. Environmental & Economic Considerations of Brine Management:
    • The challenge of high-salinity RO reject.
    • Options: Deep well injection (limited), solar evaporation ponds, Zero Liquid Discharge (ZLD) technologies (crystallization, evaporation).
    • Cost implications of ZLD.
«
»
